Nominal operating voltage
|
240Vdc
|
|
Vmax PV
|
500Vdc
|
|
PV input voltage range
|
60-450Vdc
|
|
Imax PV
|
27A
|
|
Rated Power
|
5000W
|
|
Full load MPPT range
|
240 — 450Vdc
|
|
Maximum Solar Charging Current
|
120A
|
|
|
|
|---|---|
|
Nominal Output Voltage
|
220/230/240Vac
|
|
Feed-in Grid Voltage Range
|
195-253Vac
|
|
Feed-in Grid Frequency Range
|
49-51±1Hz
|
|
Nominal Output Current
|
15.7A
|
|
Power factor Range
|
>0.99
|
|
Maxiumum Conversion Efficiency(Dc/Ac)
|
97%
|
|
Nominal Operating Frequency
|
50/60Hz
|
|
|
|
|---|---|
|
Full Load
|
4200W
|
|
Maximum Main Load
|
4200W
|
|
Maximum Second Load
|
1200W
|
|
Main Load Cut Off Voltage
|
22Vdc
|
|
Main Load Return Voltage
|
28Vdc
|
|
|
|
|---|---|
|
Nominal operating voltage
|
230Vac
|
|
Maximum input current
|
30A
|
|
Nominal operating frequency
|
50/60Hz
|
|
Surge power
|
8400VA
|
|
Maximum AC Charging Current
|
100A
|
|
|
|
|---|---|
|
Battery voltage range
|
20-33Vdc
|
|
Maximum battery current
|
150A
|
Reliable & Efficient Performance
Designed for modern solar systems, the MAX 5200 delivers stable and efficient power with advanced energy management technology. It ensures optimal solar utilization and dependable performance for residential and small commercial applications.
Smart Power Management
With intelligent load control and optimized energy distribution, the MAX 5200 efficiently manages power flow between solar panels, grid, and connected loads for smooth and consistent operation.
Smart Monitoring & Connectivity
Integrated monitoring features allow users to track system performance, energy production, and operational status in real time for better control and efficient energy management.
Galaxy MAX Series – Smart Power for Every Setup
The Galaxy MAX Series is a versatile solar inverter range designed to deliver seamless performance across On-Grid, Off-Grid, and Hybrid systems. Built for modern energy needs, the MAX Series ensures stable, efficient, and intelligent power management for homes and businesses.
🔋 Key Highlights:
- ✅ On-Grid | Off-Grid | Hybrid operation
- ✅ 9KW Upgraded MPPT for maximum solar harvesting
- ✅ Dual AC Output for load flexibility
- ✅ Run With or Without Battery (Lithium / Lead-Acid compatible)
- ✅ Pure Sine Wave Output for appliance safety
- ✅ RGB Lighting for smart status indication
⚙️ Available Models:
- MAX 5200 – Reliable everyday power
- MAX 7200 – Enhanced capacity for higher loads
Advanced Solar Inverter
Smart Power Management
Key features
of Max 5200

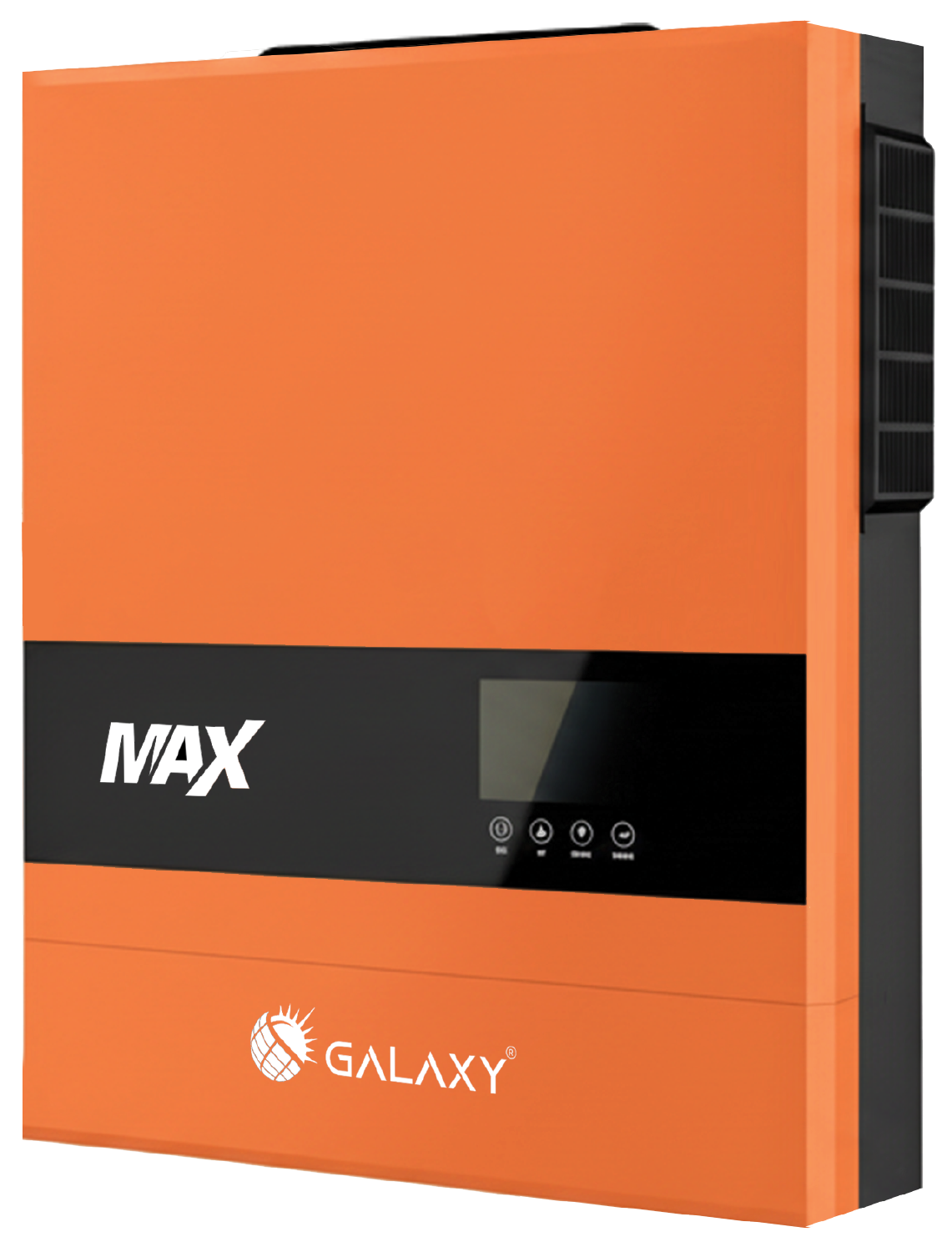

The MAX 5200 is a reliable and efficient solar inverter designed for everyday energy needs. Built with advanced power management technology, it delivers stable output, high efficiency, and dependable performance. Its compact and versatile design makes it an ideal choice for residential and small commercial solar systems requiring consistent and smart energy solutions.
9KW Upgraded MPPT
ON / OFF Grid
Dual AC Output
Pure Sine Wave
Max Series
Max Series delivers powerful, efficient solar inverters for residential and commercial energy needs.
Max
5200
Max
7200
Max PV
9500
